Description

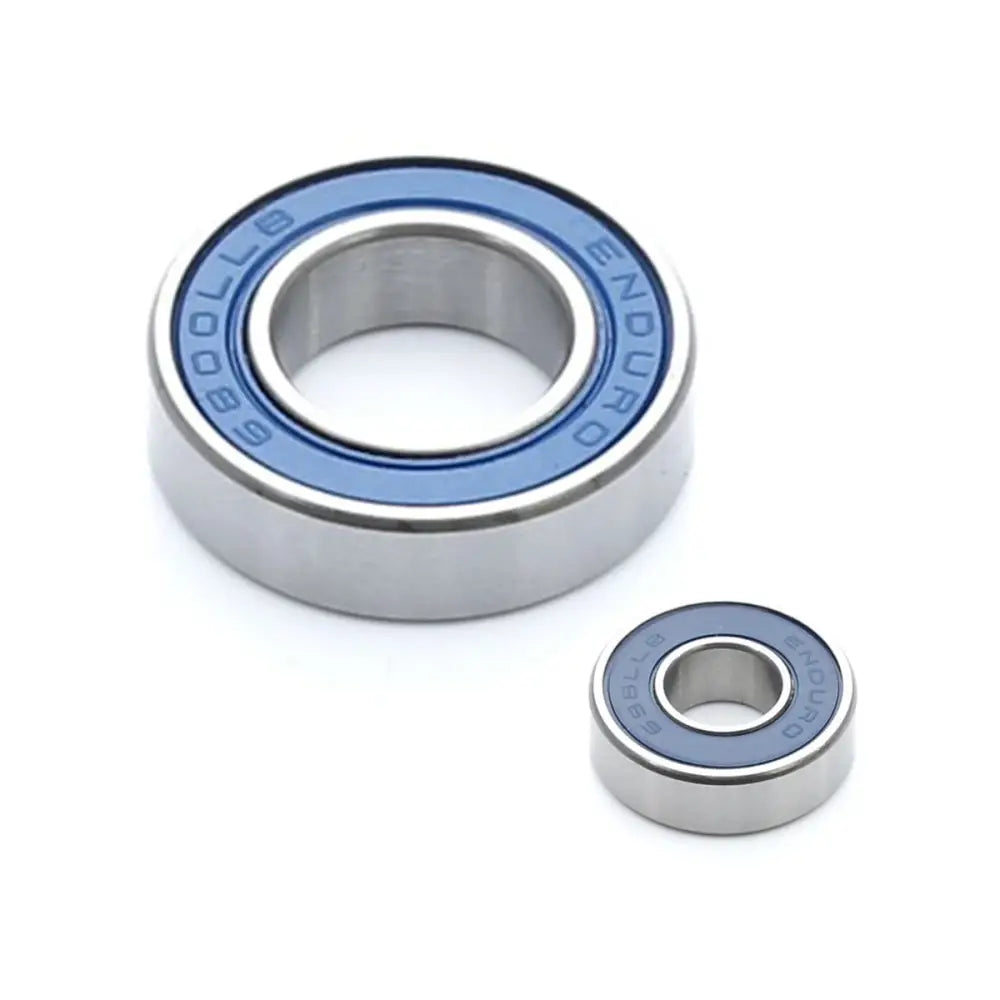

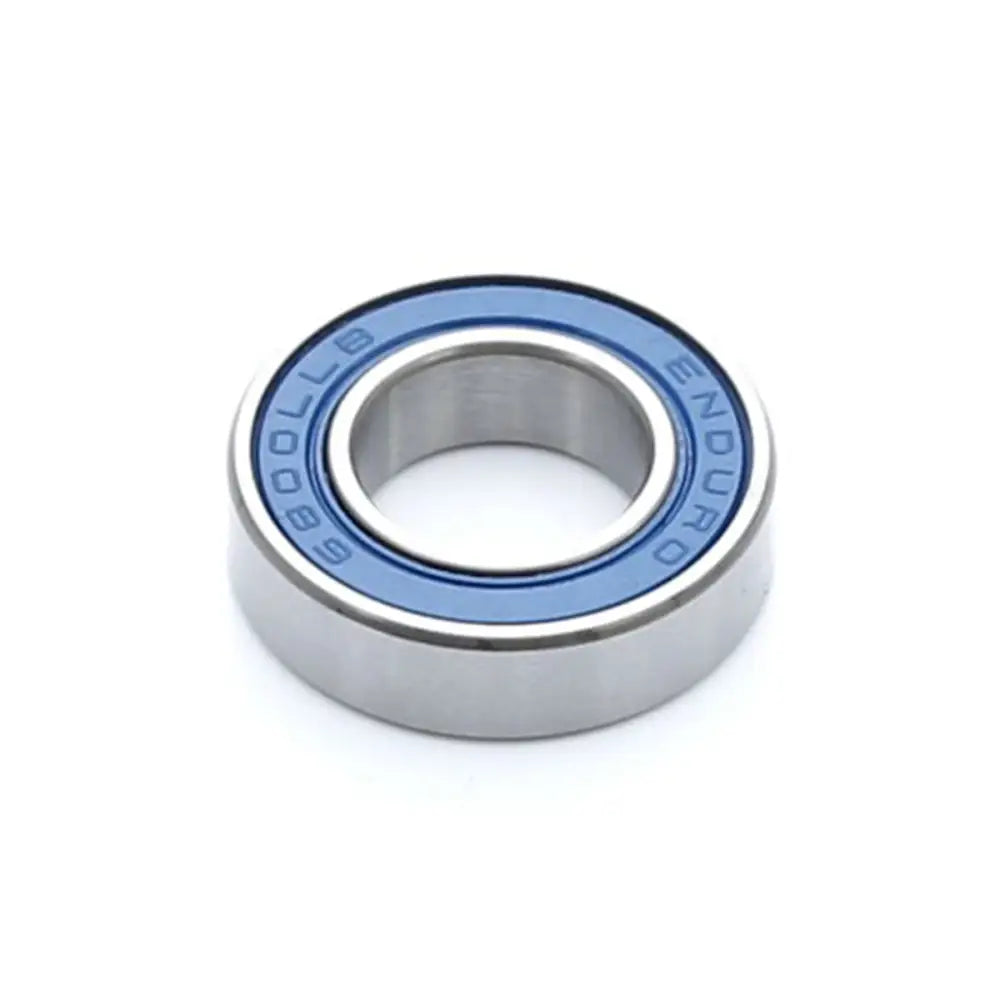

6800 LLB - Radial Bearing - 10mm x 19mm x 5mm -
ABEC3
This ABEC-3 bearing features deep-groove design races, with Grade 10 balls, dual-lip labyrinth (LLB) seals to withstand daily abuse of use and the elements, and to contain the 90% fill Mobilux NGLI 2 high pressure water proof synthetic grease.

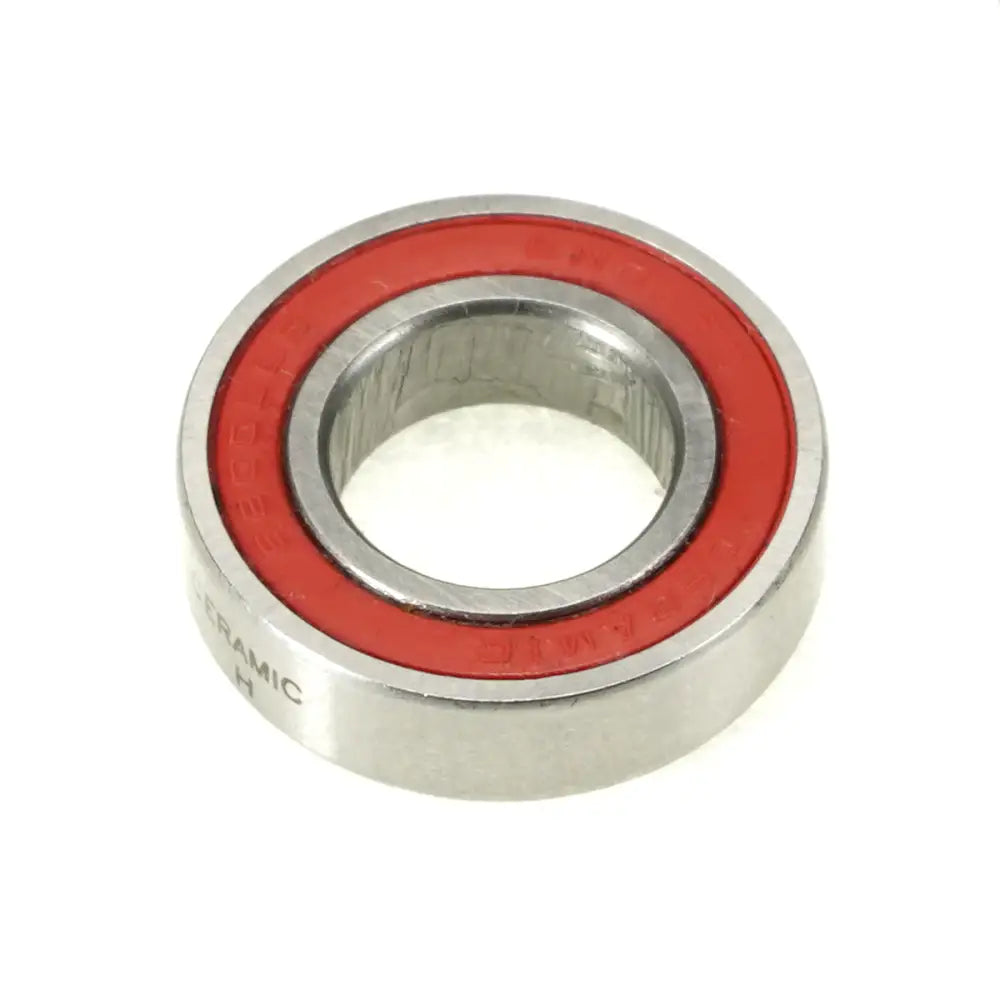

Ceramic Hybrid
This ABEC-5, Ceramic-hybrid bearing features deep-groove design 52100 High-Carbon chromium alloy races, with grade 5 Silicon-Nitride Ceramic balls, dual-lip labyrinth (LLB) seals to withstand the outside elements, and to contain the 90% fill Mobilux NGLI 2 high pressure water proof synthetic grease. Si3N4 Ceramic balls reduce bearing wear and increase bearing life by eliminating steel on steel contact within the bearing.

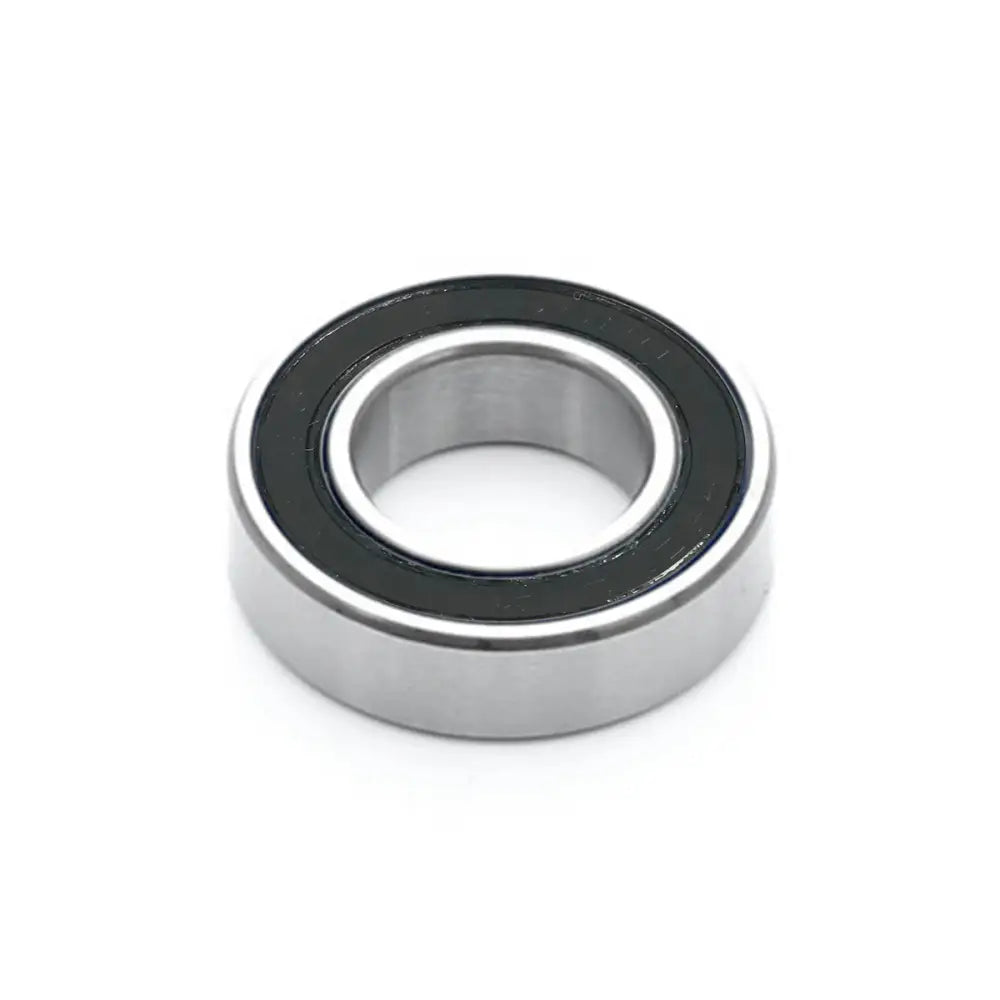

Stainless Steel
This radial bearing features 440C stainless steel alloy races and Grade 10 balls with dual-seals and 90% fill with Mobil XHP 222 high pressure water proof grease to withstand daily abuse of use and the elements.
Not all stainless steel is created equal.
Enduro only uses 440C stainless steel balls and races to provide long life and superior corrosion resistance in applications and environments that may be less than ideal. 440C has the highest strength, hardness, and wear resistance of all the standard 440-series stainless alloys with high carbon content. As expected, it is also the most expensive of the 440 series alloys and requires multiple rounds of heat treatment and cryogenic treatment to achieve its superior mechanical properties. Though stainless steel has 20% less load capacity and is slightly softer than our standard 52100 chromium steel used in most of our bearings, stainless steel is an excellent alternative for use in wet conditions, if you wash your bike often, or where sweat can be a problem.
Enduro stainless bearings all carry a full two year anti-corrosion warranty.
A radial bearing generally used as a hub bearing for some quick-release hub designs, pedals and can be used as a pivot bearing though the MAX-type version of this bearing is better suited for suspension use.
The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating full labyrinth to provide long life and superior protection against the elements.
Static load - 172lbf / 0.76kN
Weight - 4.9g
