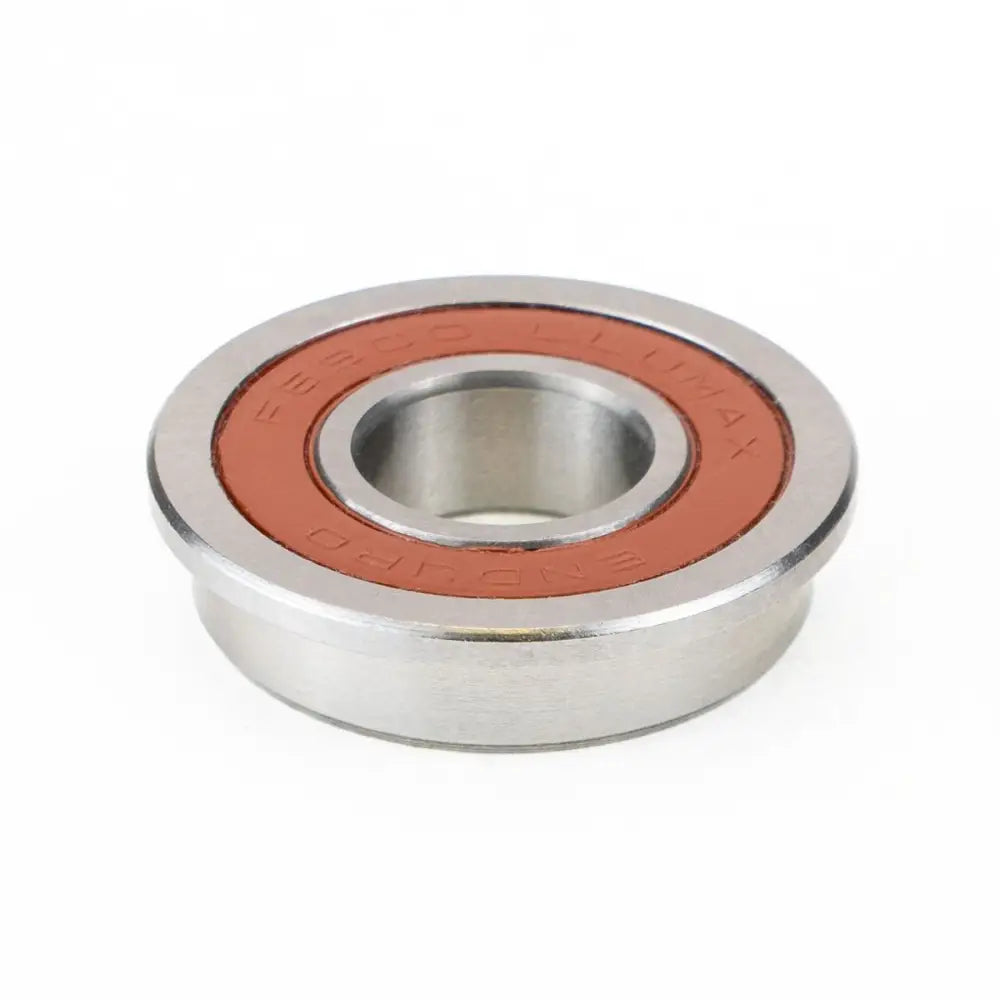

F6900 LLU MAX - Flanged, MAX-Design, ABEC-3, radial suspension bearing - 10mm 22/25mm x 6mm -
Enduro bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. These bearings have 35-40% more load capacity than standard radial bearings. We accomplish this with a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside.
This bearing is currently being used as a suspension pivot bearing by Banshee.
Enduro bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid andD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 485lbf / 2.15kN
Weight - 16g
