Description
The Vektron Q9 is equipped with hydraulic disc brakes, a sturdy rear rack, Valo Direct light, and fenders--so it is ideal for all-season commuting in the city.
- New colours and updated styling
- Upgraded to the Bosch Active Line Plus electric drivetrain for up to 270% assistance and 50 Nm of torque

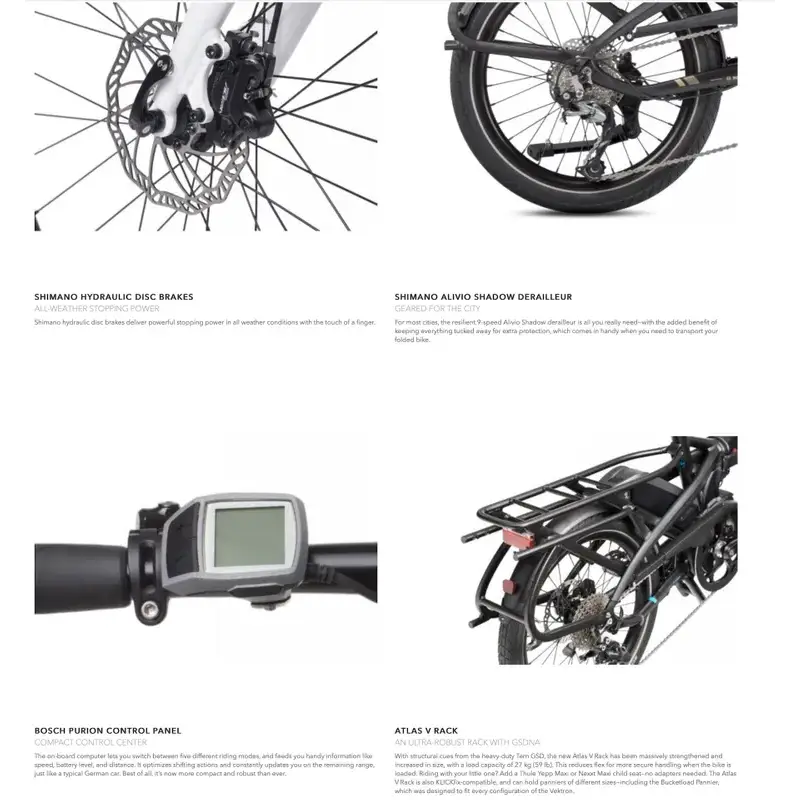

- Hydraulic disc brakes for all-weather stopping power

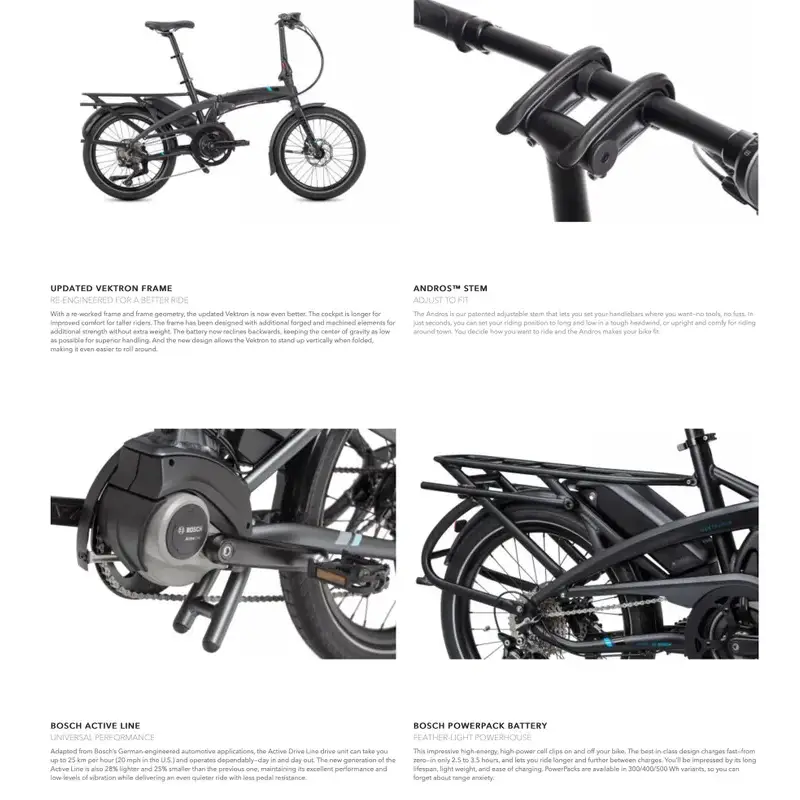

- Updated frame with a reclining battery for a lower center of gravity and better ride
- Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik
- Integrated Atlas V Rack™ works seamlessly with Thule Yepp Maxi and Dash® RM child seats—no adapters needed
- Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family
SPECIFICATIONS
GENERAL INFO
SPEEDS:1 x 9
WEIGHT: 21.9 kg (48.3 lb)
GEAR INCHES: 33" - 97" (2.65 - 7.72 m)
FOLDING SIZE: 41 × 86 × 68 cm (16.1 × 33.9 × 26.8 in)
FOLDING TIME: 10 sec
FRAME SIZES: One size
DISTANCE: SEATPOST TO HANDLEBAR: 62 - 69 cm (24.4 - 27.2 in)
DISTANCE: SADDLE TO PEDAL: 67 - 110 cm (26.4 - 43.3 in)
SUGGESTED RIDER HEIGHT: 147 - 195 cm (57.9 - 76.8 in)
MAX GROSS VEHICLE WEIGHT: 125 kg (275.6 lb)
MAX RIDER WEIGHT: 105 kg (231.5 lb)
FRAME
FRAME: Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
FORK: Tern Tarsus, 6061-Al, hydroformed
COCKPIT
HANDLEPOST: Tern Physis 3D, 3D forged, 5 patented technologies
STEM: Tern Andros, adjustable, forged construction, patented technology
HEADSET: Tern Flux, cartridge bearings, Physis integrated
HANDLEBAR: Flat bar, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE: Velo ergonomic, lock-on
SADDLE: Tern Porter, patented GripPad design
SEATPOST: Tern Telescope, 34.9 mm, Lite 2014-AL
SEATPOST CLAMP: Oversize, 6061-AL, 2pc
BRAKES
FRONT BRAKE: Shimano, hydraulic disc
REAR BRAKE: Shimano, hydraulic disc
BRAKE LEVERS: Shimano, hydraulic disc
BRAKE CABLE & HOUSING: Shimano, hydraulic disc
WHEELS
FRONT HUB: Shimano disc
REAR HUB: Shimano disc
SPOKES AND NIPPLES: Stainless steel
RIMS: Kinetix Comp, for disc
TYRES: Schwalbe Big Apple, 55-406, puncture protection, Reflex
TRANSMISSION
SHIFTER(S): Shimano Alivio, 1 x 9 spd, trigger
REAR DERAILLEUR: Shimano Alivio Shadow
CRANKSET: Vektron custom, forged 6061-AL crankarm
CASSETTE/FREEWHEEL: Shimano 11-32T, 9 spd
BOTTOM BRACKET: Motor integrated
CHAIN: 9 spd, DHT for eBike, GST corrosion-resistant coating
PEDALS: MKS EZY
SHIFTER CABLE & HOUSING: Jagwire LEX-SL, slick treatment, alloy ferrules
E-SYSTEM
MOTOR: Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 20 mph / 32kph
BATTERY: Bosch PowerPack 400 Wh
DISPLAY: Bosch Purion, 4 modes selectable, walk assist
RANGE: 400 Wh: 55 -110 km (35-70 mi)
CHARGER: 220V, 4A
BELLS & WHISTLES
BELL: Aluminum
CHAINGUARD: SKS Chainblade
KICKSTAND: URSUS, rear mount
CLIP SYSTEM: Magnetix 3.0
LUGGAGE SOCKET: Yes
FRONT LIGHT: Tern Valo Direct, 190 lumens
REAR LIGHT: Herrmans H-Trace, for eBike
FENDERS: SplashGuard, stainless hardware
RACK(S): Atlas V Rack, integrated 8-point mounting, max load capacity 27 kg (59 lb)
PLEASE NOTE THIS ITEM IS STORE PICKUP ONLY PLEASE CONTACT YOUR LOCAL STORE TO CHECK THE AVAILABILITY.
