Description

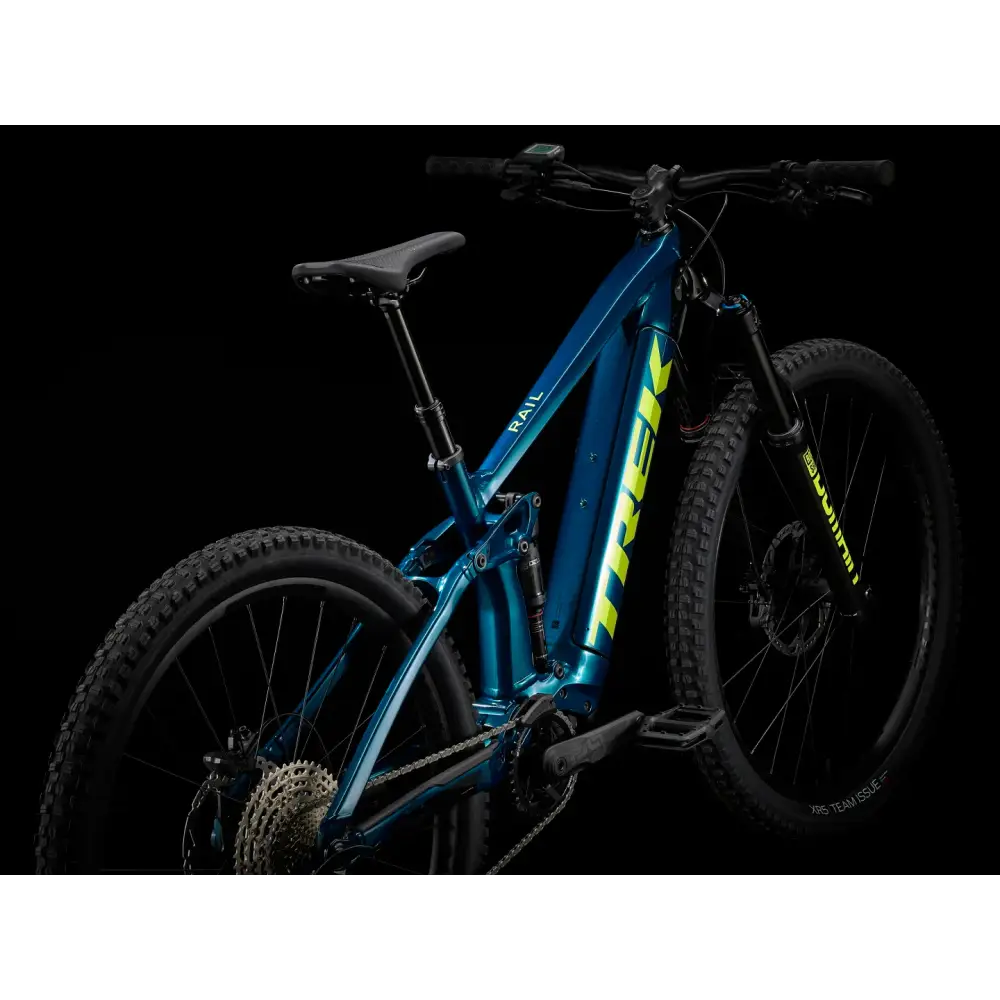

Rail 7 is a long-travel electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analogue trail bikes, an upgraded fork, drivetrain, battery and more, plus a powerful Bosch drive system that's basically like having your own shuttle.

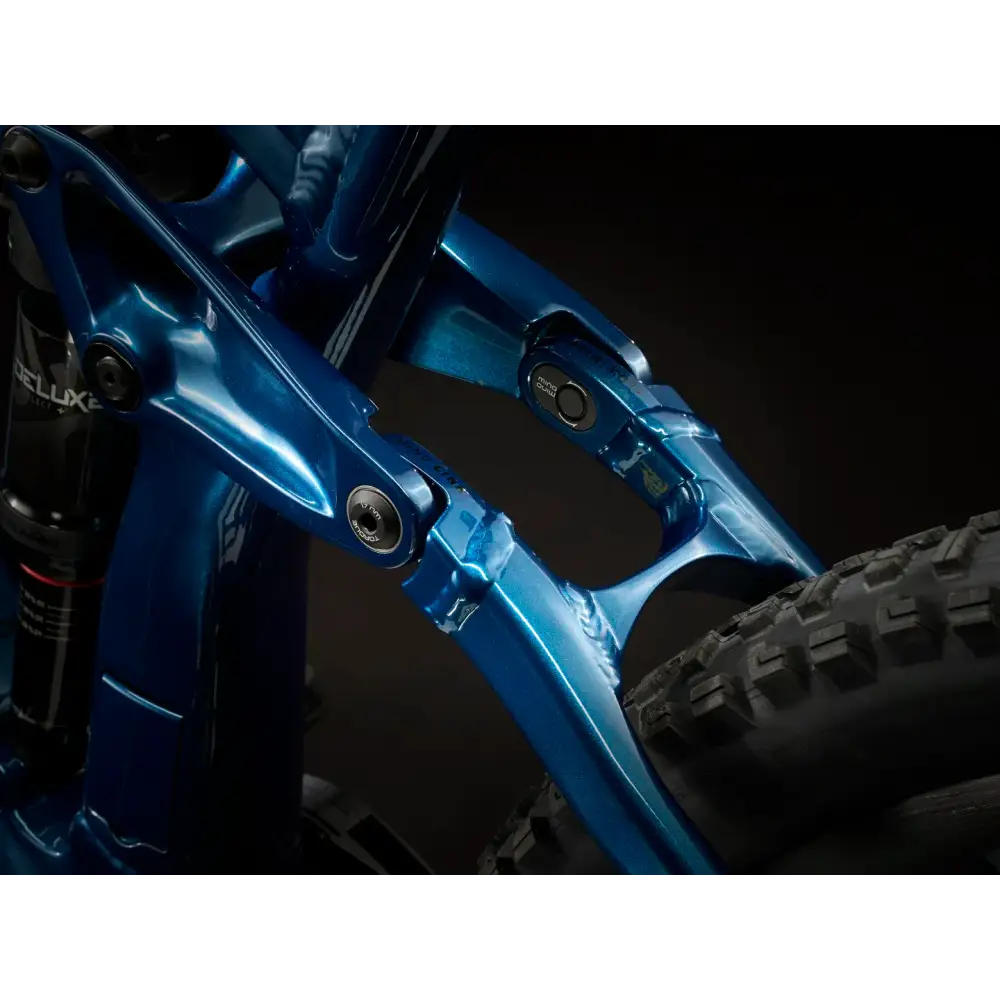

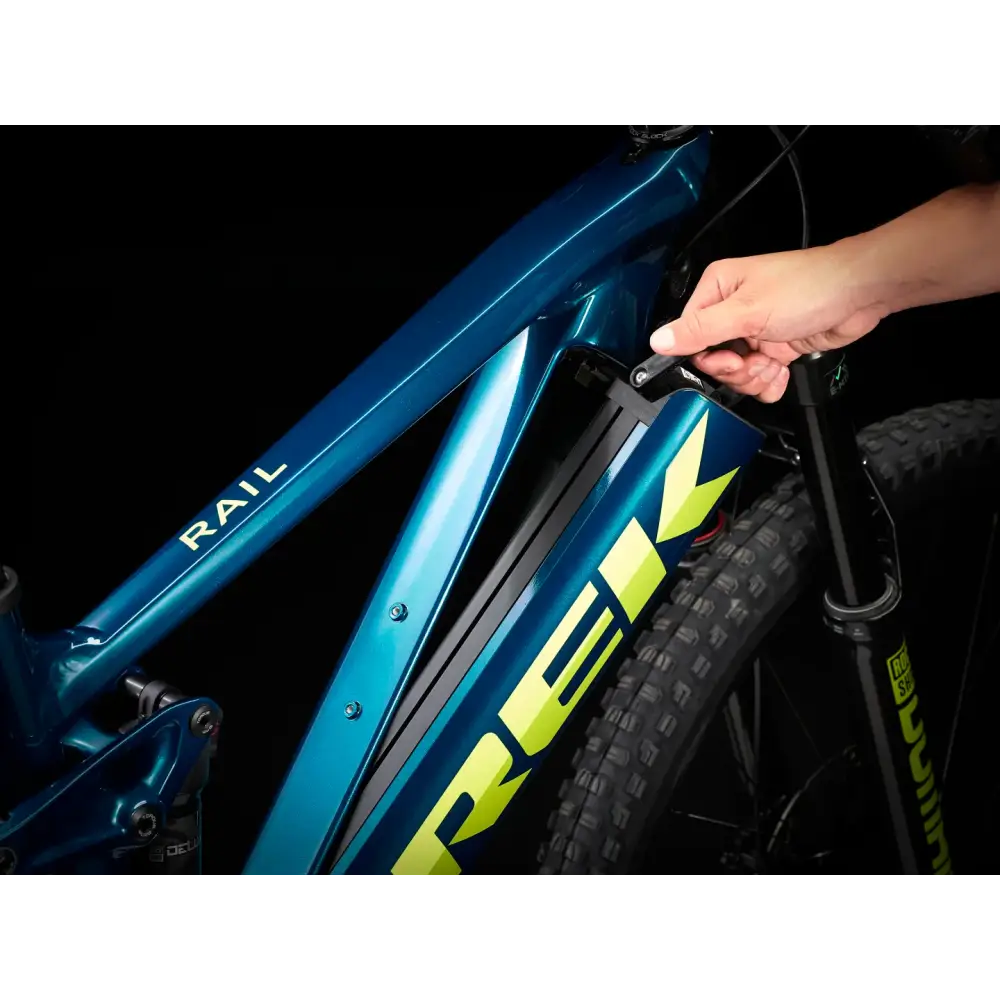

Frame Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Fork RockShox Domain RC, Debon Air spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel

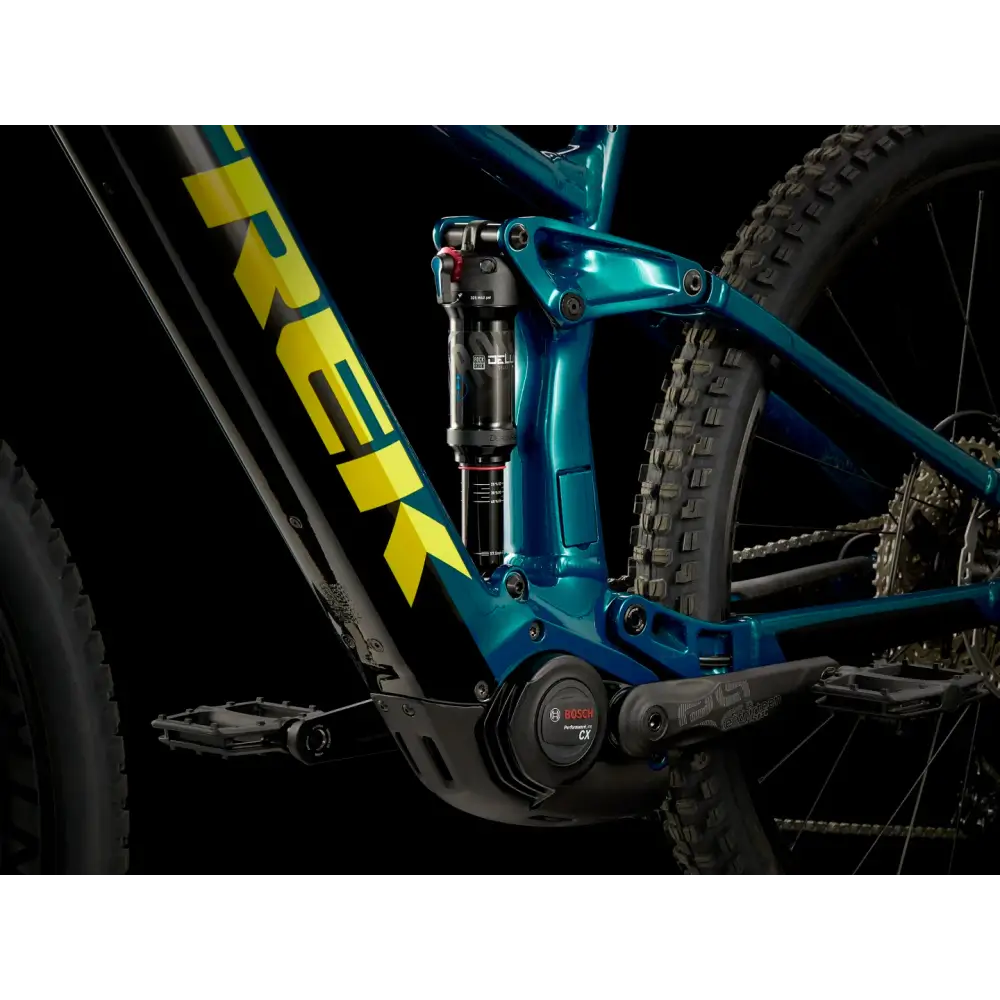

Shock RockShox Deluxe Select+, 230x57.5 mm

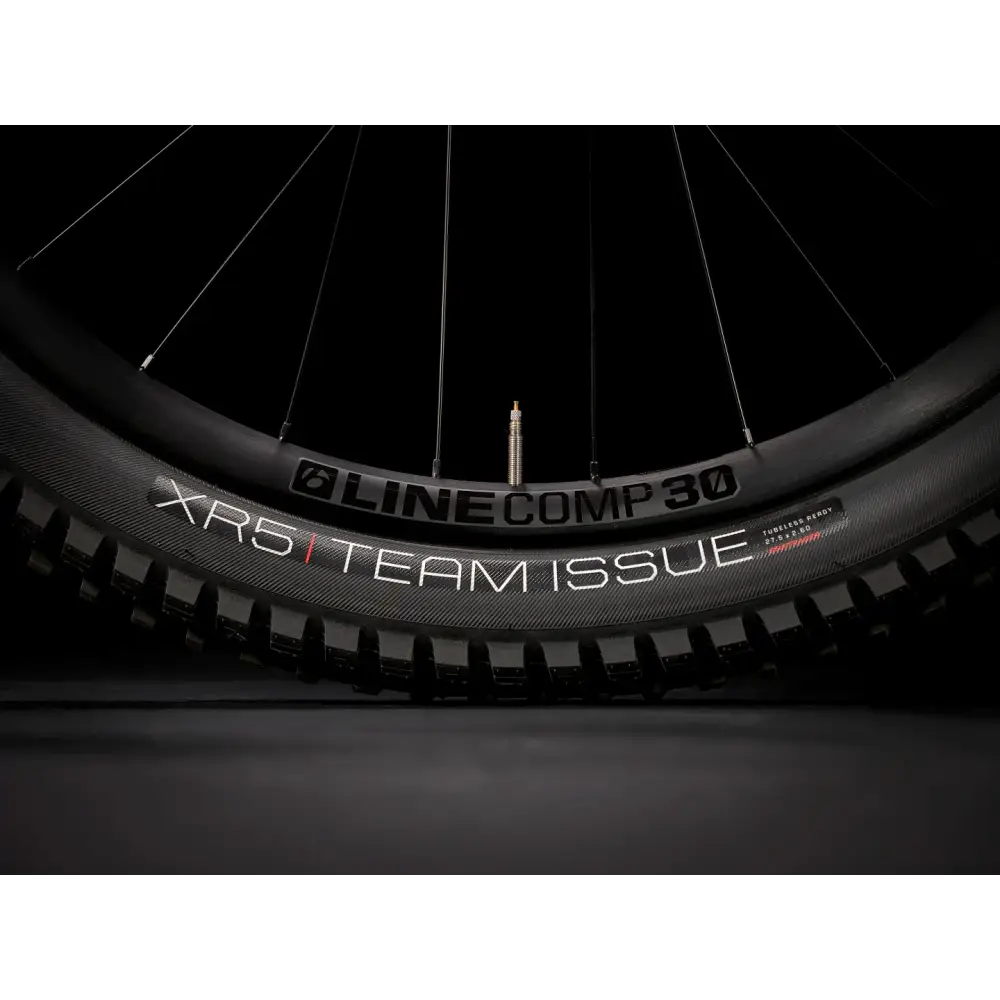

Wheels Wheel front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle
Skewer rear Bontrager Switch thru-axle, removable lever
Tyre Size: S, M, L, XL Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
Size: S, M, L, XL Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.60"
Tyre part Size: S, M, L, XL Bontrager TLR sealant, 180 ml/6 oz
Size: S, M, L, XL Bontrager TLR valve, 50 mm
Rim strip Bontrager TLR
Drivetrain ShifterShimano SLX M7100, 12-speed

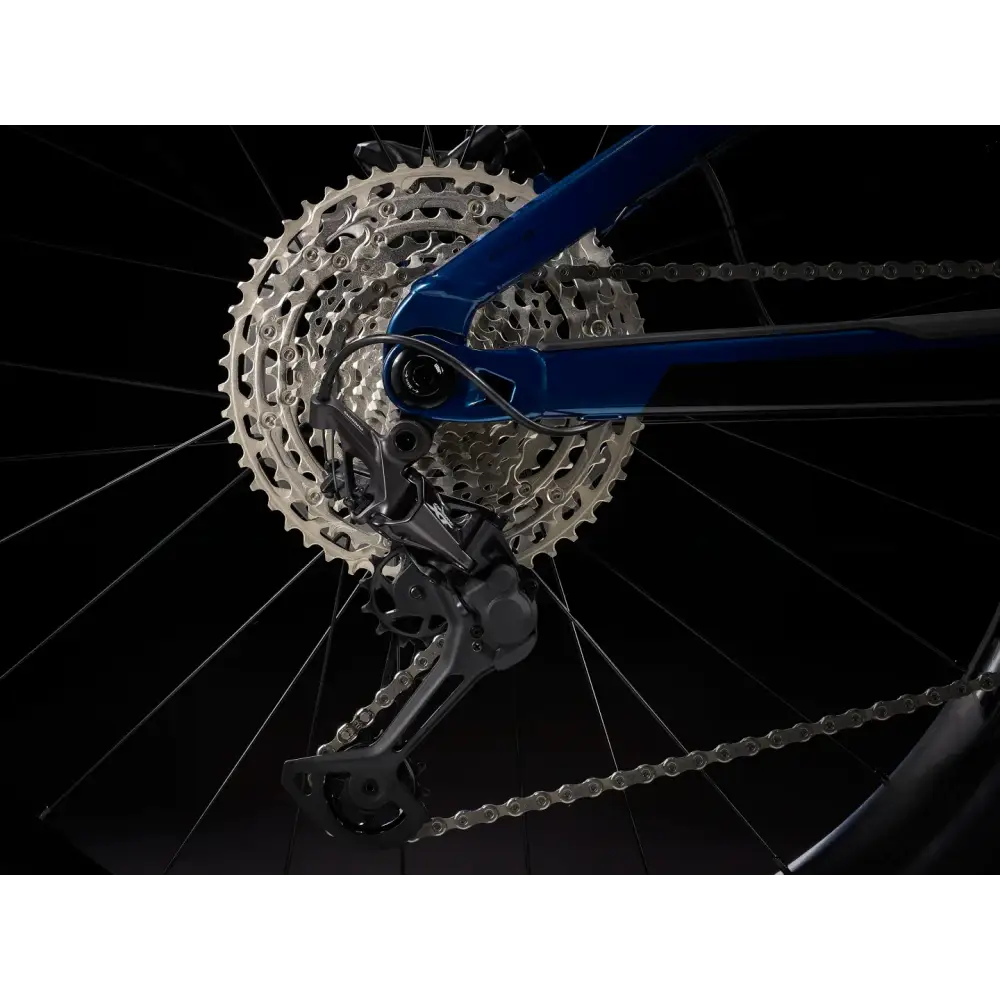

Rear derailleur Shimano XT M8100, long cage, 51T max cog
Crank arm E*thirteen E*spec Plus, 34T, 165 mm length
Cassette Shimano Deore M6100, 10-51, 12-speed
Chain Shimano SLX M7100, 12-speed
Pedal VP-536 nylon platform
Components Saddle Bontrager Arvada, steel rails, 138 mm width
Seatpost Size: S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size: M, L, XL TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 445 mm length
Handlebar Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 780mm width
Grips Bontrager XR Trail Comp, nylon lock-on
Stem Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Head set Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
Brake Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Brake rotor Shimano RT76, 6-bolt, 203 mm
Accessories ChargerBosch standard 4A (220-240 V) charger

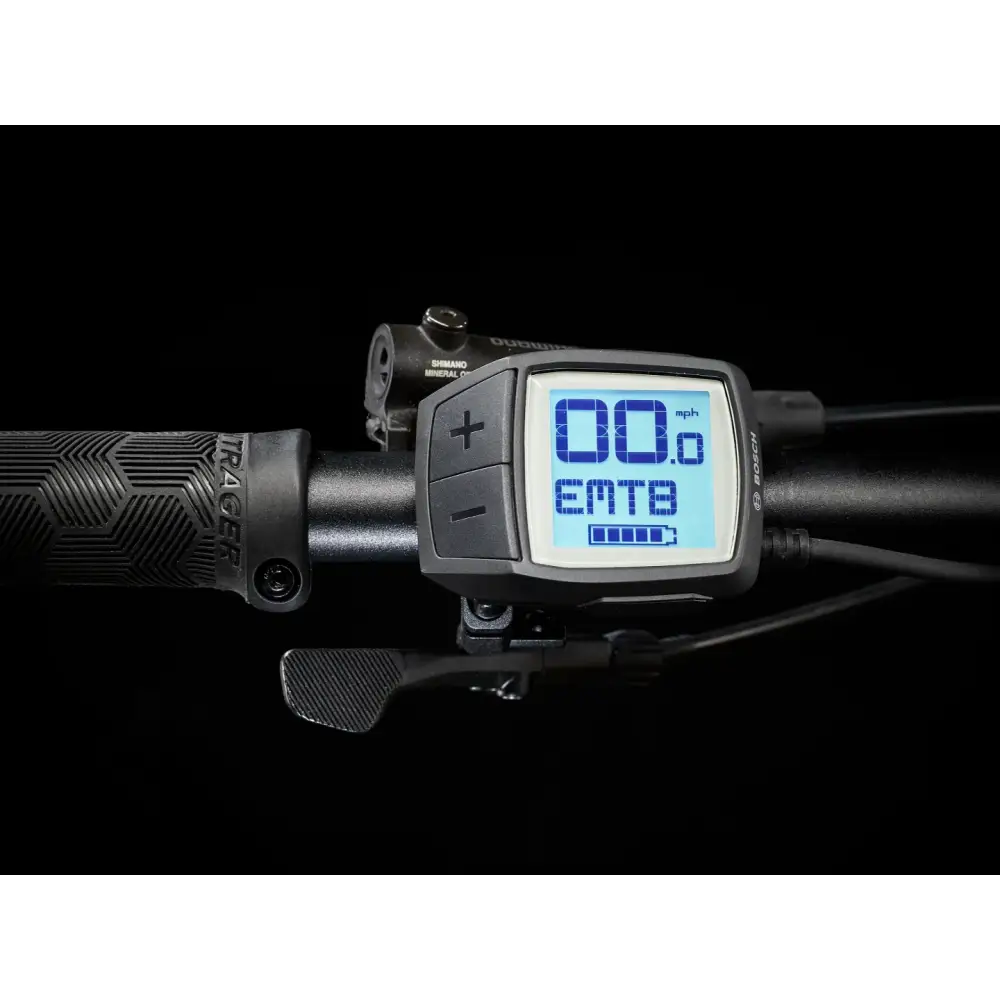

Controller Bosch Purion

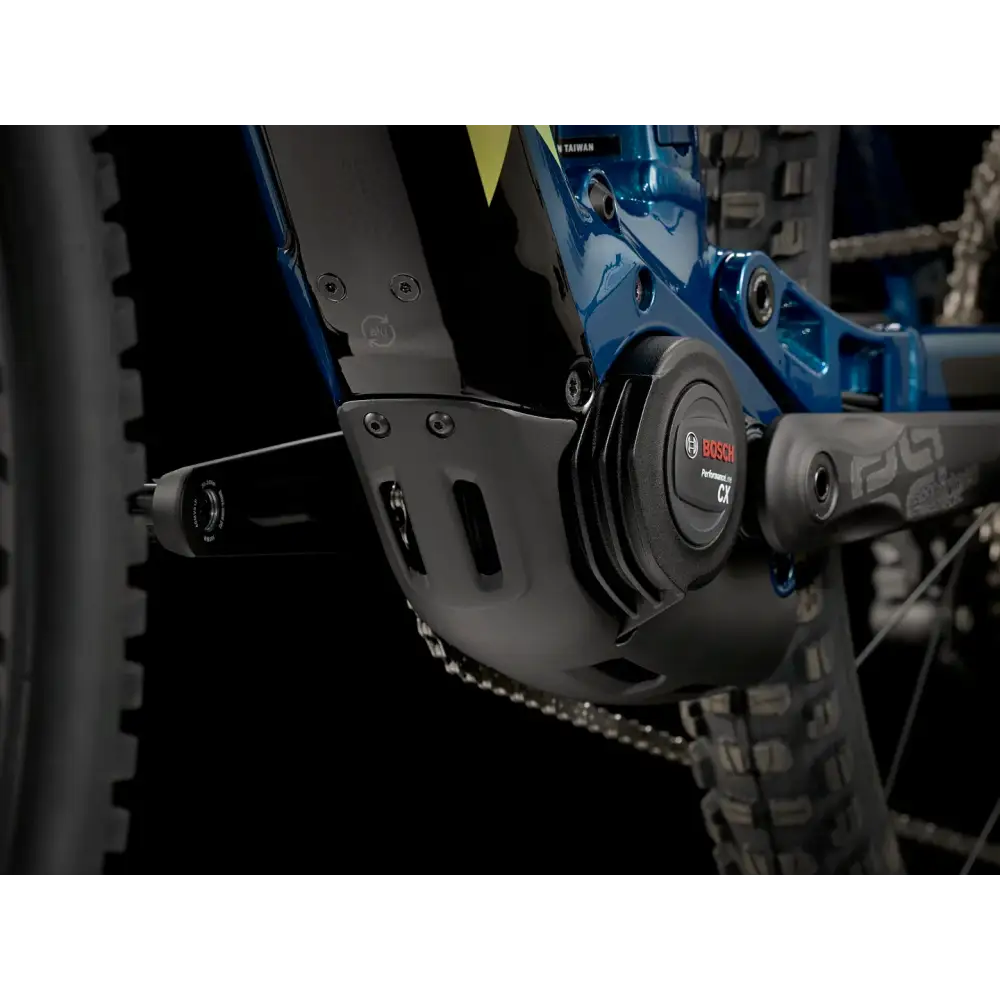

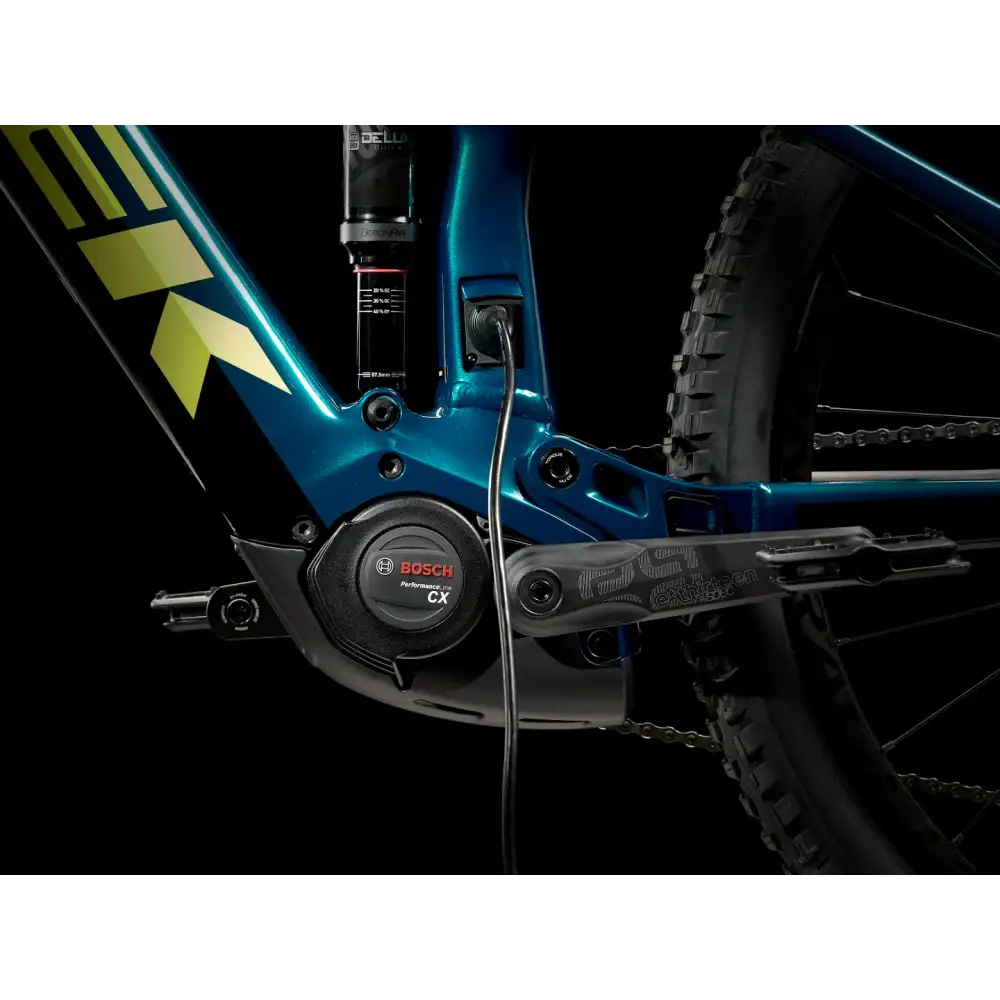

Motor Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand
Weight Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
