Description

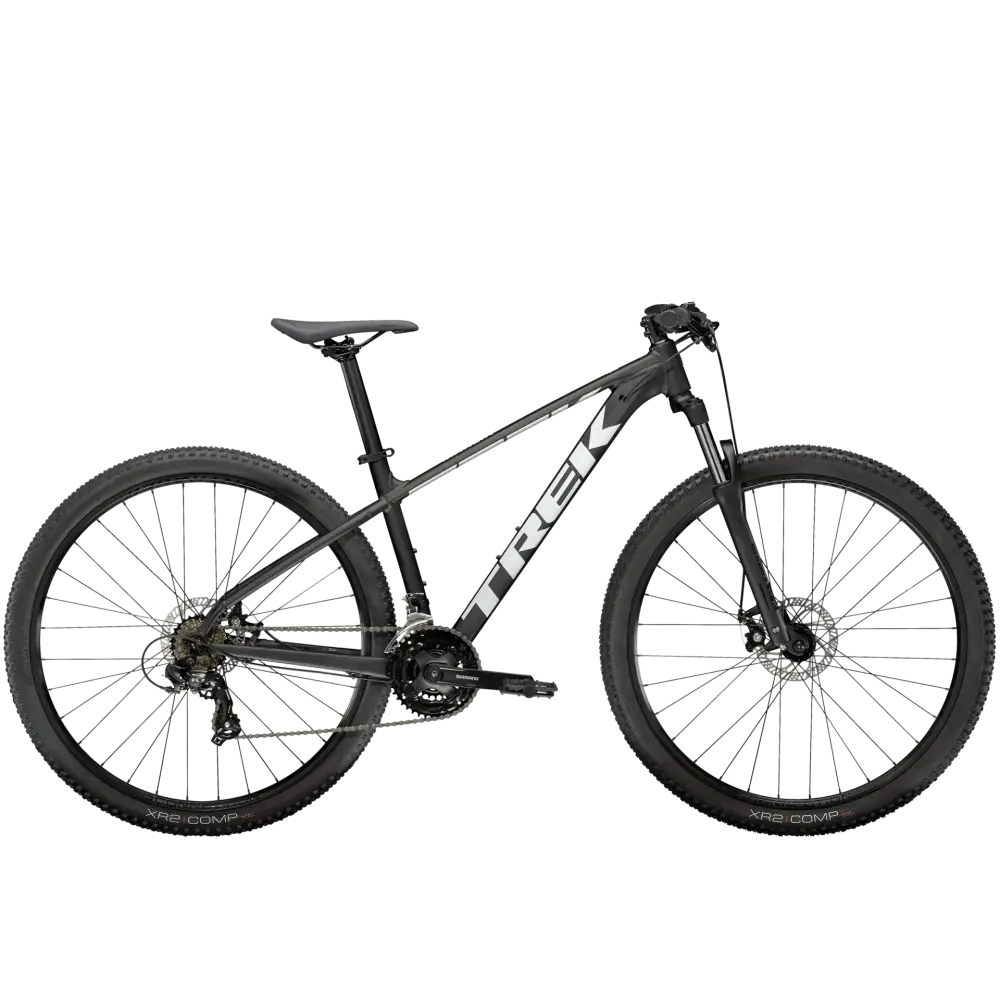

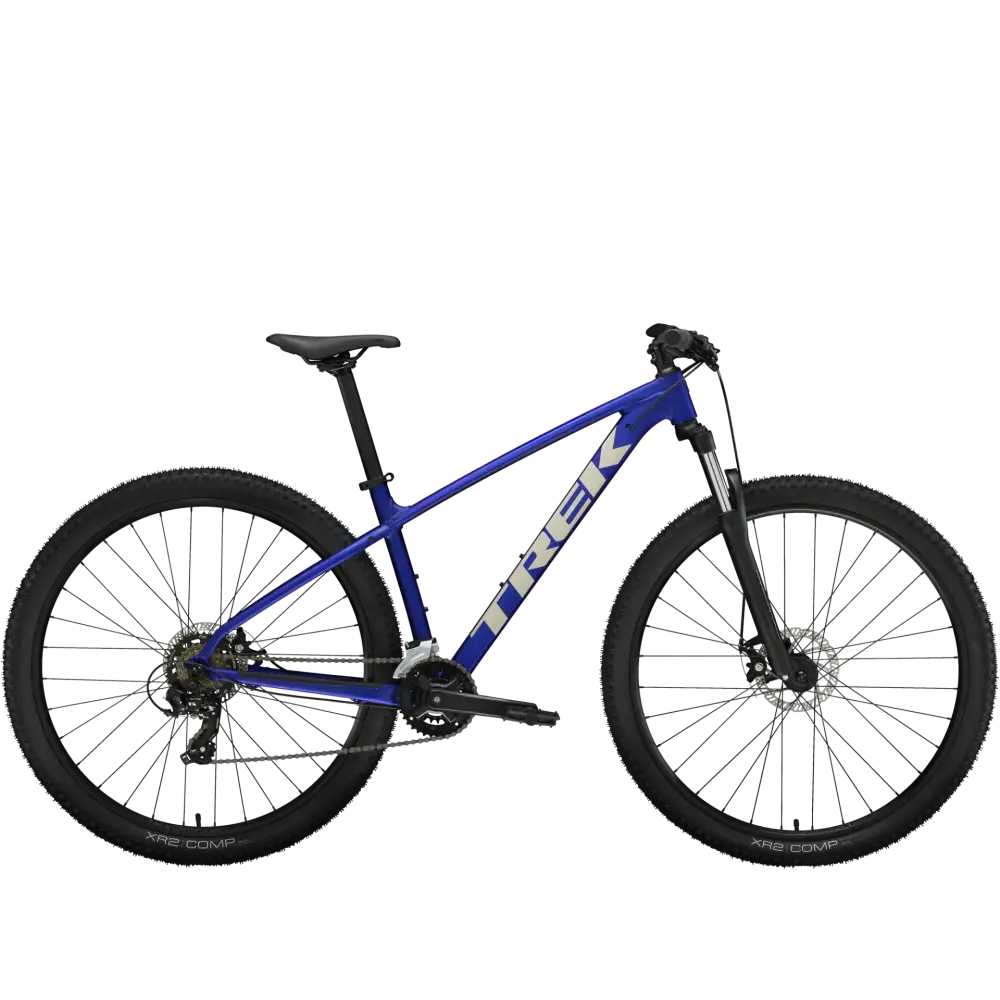

Marlin 4 is the perfect gateway to trail riding. It's ideal for new riders who want a mountain bike with knobby tyres, that can double as a rugged commuter. Disc brakes, front suspension, 21 speeds and mounts for a rack and fenders make this a great bike for new trail riders and campus commuters alike.
Frame Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
Fork Size: XS SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
Size: S SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: M , ML , L , XL SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Max compatible fork travel100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)
Wheels Hub front Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Hub rear Formula DC-31, alloy, 6-bolt, 6/7/8-speed freewheel, 135x5 mm QR
Rim Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes14 g stainless steel
Tyre Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20"
Size: M , ML , L , XL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20"
Size: M , ML , L , XL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.00"
Max tyre size Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer
Drivetrain Shifter Shimano Altus EF500, 7-speed
Front derailleur Shimano Tourney TY300, 34.9 mm clamp, down swing, down pull
Rear derailleur Shimano Tourney TY300, long cage, 34T max cog
Crank Size: XS , S , M Shimano Tourney TY301, 42/34/24, 170 mm length
Size: ML , L , XL Shimano Tourney TY301, 42/34/24, 175 mm length
Bottom bracket VP BC73, 73 mm, threaded cartridge
Cassette Shimano TZ500, 14-28, 7--speed
Chain KMC Z7, 7-speed
Pedal VP-536 nylon platform
Max. chainring size1x/2x: 34T, 3x: 42T
Components Saddle Bontrager Arvada, steel rails, 138 mm width
Seatpost Size: XS , S Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: M Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length
Size: ML , L , XL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar Size: XS , S Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: M , ML , L , XL Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
Grips Bontrager XR Endurance Comp
Stem Size: XS Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Size: S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size: M Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: ML , L Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: XL Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length
Head set Semi-integrated, 1-1/8"
Brake Size: XS , S , M , ML , L , XL Tektro MD-M280 mechanical disc, 160 mm rotor
Size: XS , S , M , ML , L , XL Tektro MD-M281 mechanical disc
Weight Weight M - 30.82 lbs / 13.9815 kg
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
PLEASE NOTE BIKES ARE STORE PICKUP OR LOCAL AREA DELIVERY ONLY WE CAN NOT COURIER. PLEASE CONTACT YOUR LOCAL STORE TO CHECK AVAILABILITY.
